Specifications
Product Parameters
Model-specific data below is maintained from the internal specification sheet. Final quotation can still be confirmed by selected model, order quantity, and buyer market requirements.
A listed withstand-voltage value is not a working-voltage rating or permission for live electrical work. Before electrical use, request documentation for the exact ladder model and confirm the test conditions, equipment condition and permitted use. A material report alone does not establish whole-ladder electrical protection.

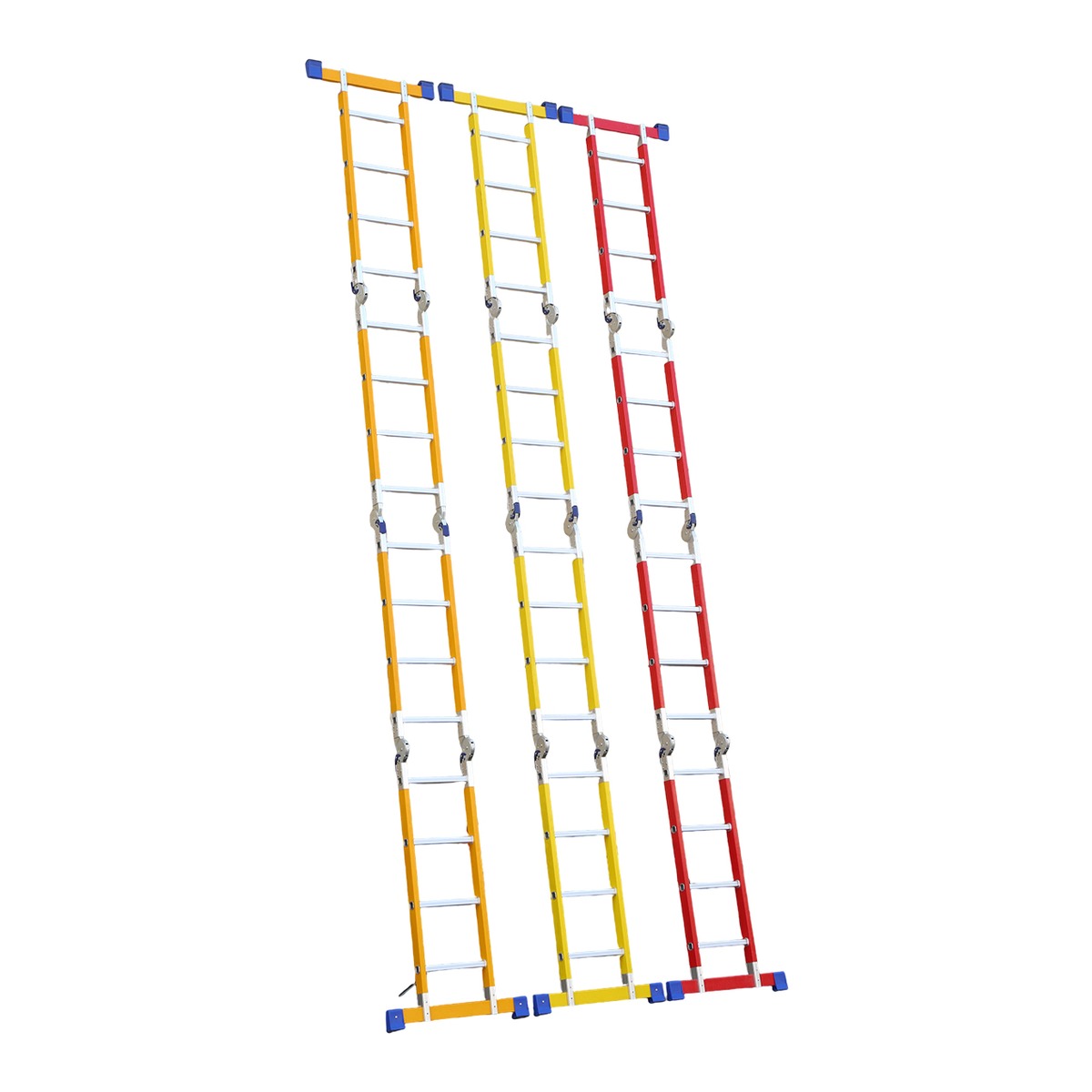

| Item No. | Step | Withstand Voltage | Pedal Spacing | Straight/A Shape Height | Weight | Packing Size | Thickness | Max Load | Packing |
|---|---|---|---|---|---|---|---|---|---|
| SSF801-370 | 4×3 | 35KV | 28CM | 352/174CM | 14.6KG | 98×27.5×37CM | 3.0MM | 150KG | Cover&Shrink |
| SSF801-475 | 4×4 | 35KV | 28CM | 464/227CM | 16.8KG | 125×27.5×37CM | 3.0MM | 150KG | Cover&Shrink |
| SSF801-580 | 4×5 | 35KV | 28CM | 575/281CM | 18.8KG | 153×27.5×37CM | 3.0MM | 150KG | Cover&Shrink |
| SSF801-700 | 4×6 | 35KV | 28CM | 685/335CM | 21KG | 181×27.5×37CM | 3.0MM | 150KG | Cover&Shrink |
| SSF801-840 | 4×7 | 35KV | 28CM | 795/389CM | 23.2KG | 209×27.5×37CM | 3.0MM | 150KG | Cover&Shrink |
