80 mm Profile
Use the model rows below to confirm the exact product weight and packing size for the selected 80 mm side rail profile.
Fiberglass Ladders

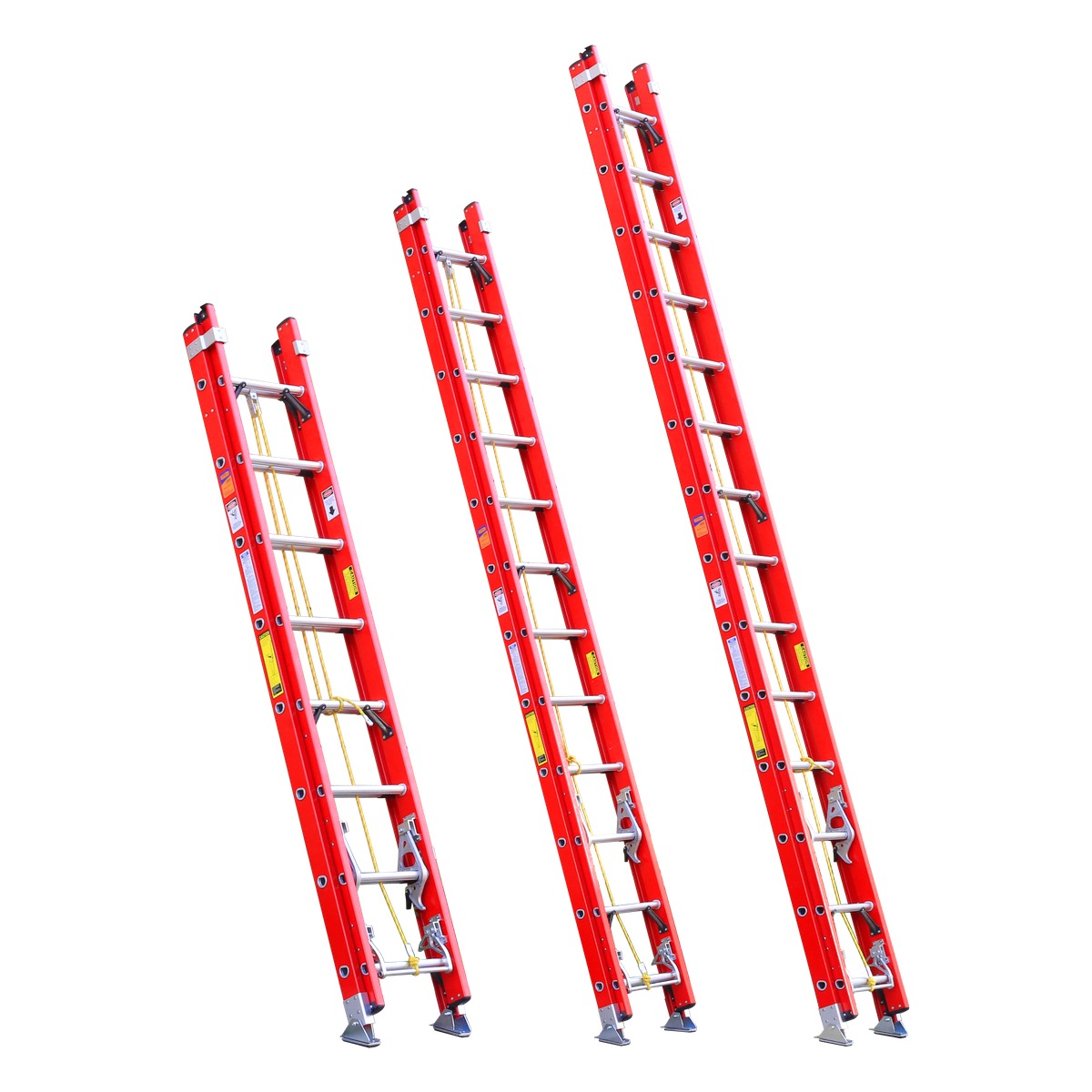

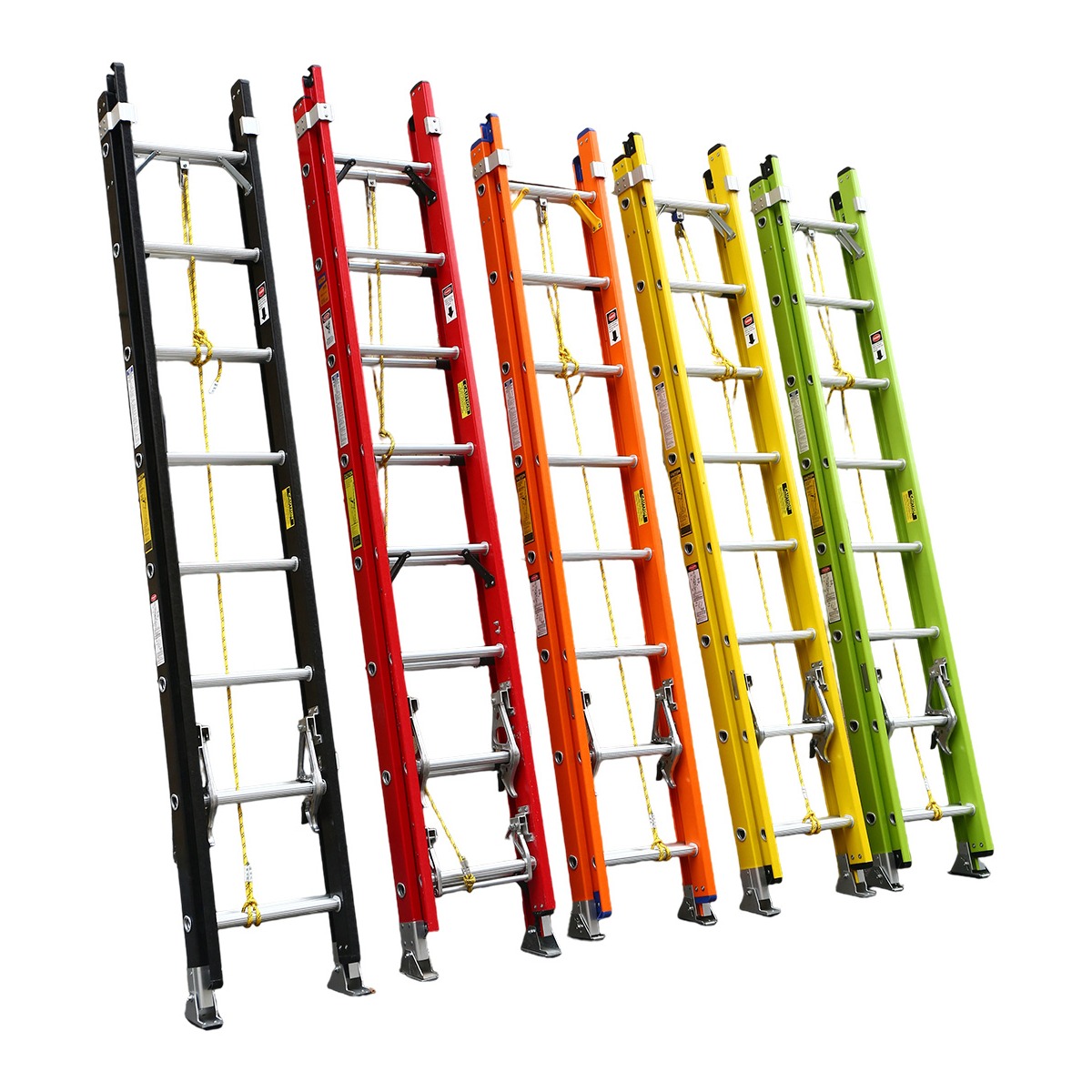

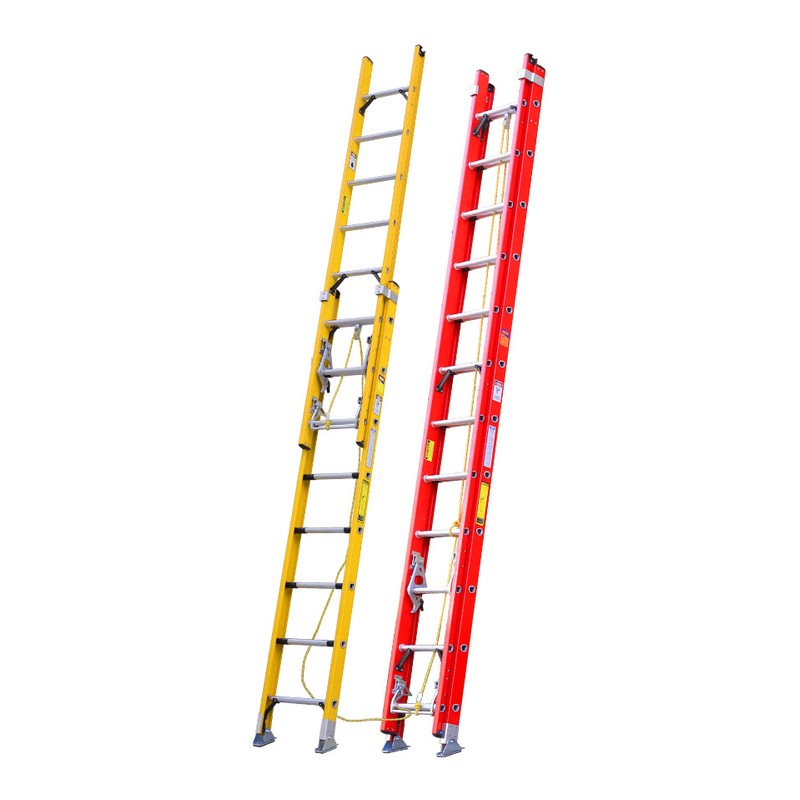

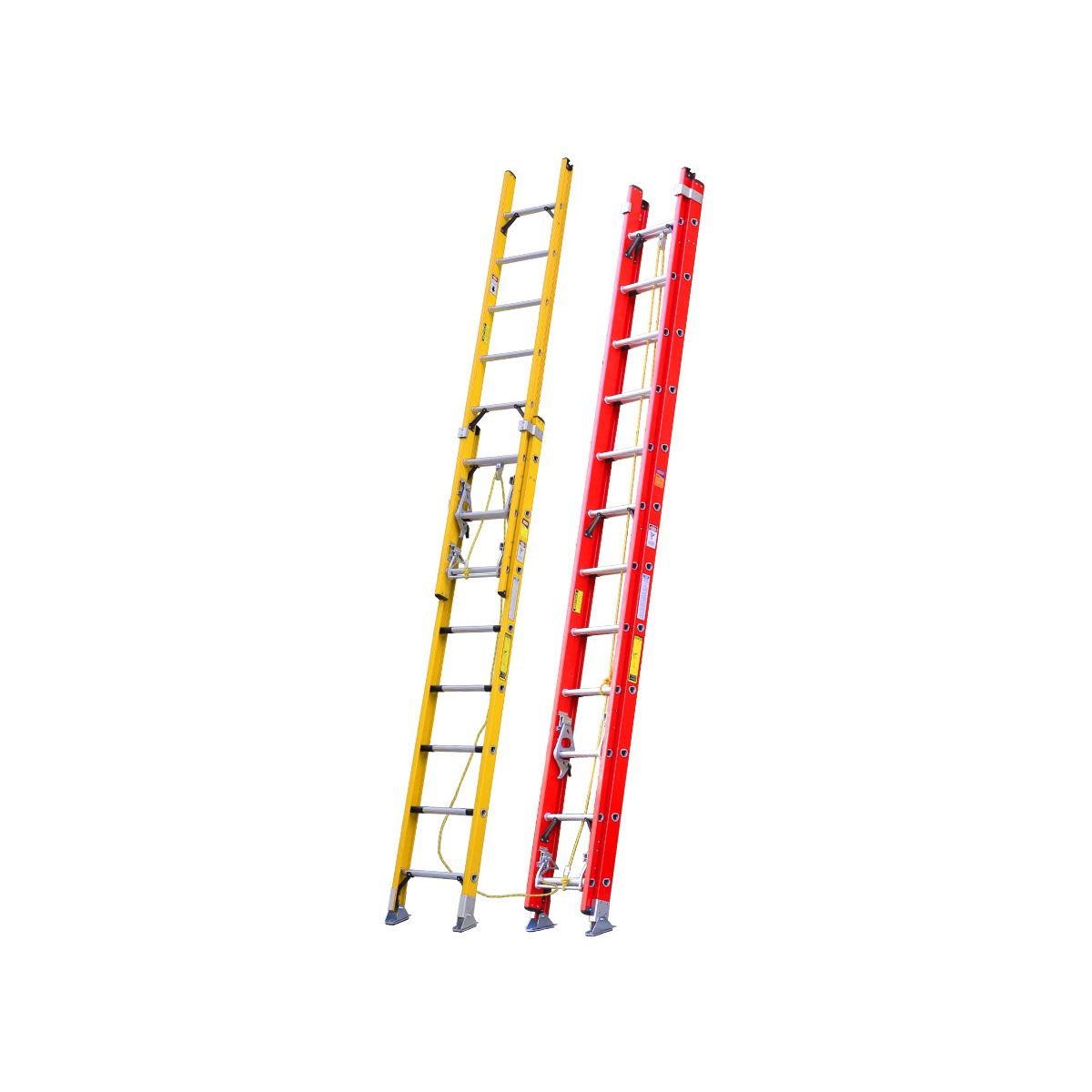

Fiberglass Two Section Extension Ladder with 80 mm or 86 mm Side Rail Profiles
Compare two-section fiberglass extension ladders with 80 mm and 86 mm rails by open height, weight and packing dimensions.
Specifications
Product Parameters
Model-specific data below is maintained from the internal specification sheet. Final quotation can still be confirmed by selected model, order quantity, and buyer market requirements.
A listed withstand-voltage value is not a working-voltage rating or permission for live electrical work. Before electrical use, request documentation for the exact ladder model and confirm the test conditions, equipment condition and permitted use. A material report alone does not establish whole-ladder electrical protection.
| Item No. | Side Rail Profile | Step | Withstand Voltage | Pedal Spacing | Open Height | Weight | Packing Size | Thickness | Max Load | Packing |
|---|---|---|---|---|---|---|---|---|---|---|
| SSF804-8 | 80 mm | 8×2 | 35KV | 30CM | 408CM | 14.4KG | 260×45×16CM | 3.0MM | 150KG | Cover&Shrink |
| SSF864-8 | 86 mm | 8×2 | 35KV | 30CM | 408CM | 17KG | 260×45×17.5CM | 3.0MM | 150KG | Cover&Shrink |
| SSF804-10 | 80 mm | 10×2 | 35KV | 30CM | 528CM | 17KG | 320×45×16CM | 3.0MM | 150KG | Cover&Shrink |
| SSF864-10 | 86 mm | 10×2 | 35KV | 30CM | 528CM | 19.8KG | 320×45×17.5CM | 3.0MM | 150KG | Cover&Shrink |
| SSF804-12 | 80 mm | 12×2 | 35KV | 30CM | 618CM | 19.8KG | 380×45×16CM | 3.0MM | 150KG | Cover&Shrink |
| SSF864-12 | 86 mm | 12×2 | 35KV | 30CM | 618CM | 22.4KG | 380×45×17.5CM | 3.0MM | 150KG | Cover&Shrink |
| SSF804-14 | 80 mm | 14×2 | 35KV | 30CM | 738CM | 22.4KG | 440×45×16CM | 3.0MM | 150KG | Cover&Shrink |
| SSF864-14 | 86 mm | 14×2 | 35KV | 30CM | 738CM | 25KG | 440×45×17.5CM | 3.0MM | 150KG | Cover&Shrink |
| SSF804-16 | 80 mm | 16×2 | 35KV | 30CM | 858CM | 25KG | 500×45×16CM | 3.0MM | 150KG | Cover&Shrink |
| SSF864-16 | 86 mm | 16×2 | 35KV | 30CM | 858CM | 33.6KG | 500×45×17.5CM | 3.0MM | 150KG | Cover&Shrink |
| SSF804-18 | 80 mm | 18×2 | 35KV | 30CM | 948CM | 33.6KG | 560×45×16CM | 3.0MM | 150KG | Cover&Shrink |
| SSF864-18 | 86 mm | 18×2 | 35KV | 30CM | 948CM | 36.4KG | 560×45×17.5CM | 3.0MM | 150KG | Cover&Shrink |
| SSF804-20 | 80 mm | 20×2 | 35KV | 30CM | 1068CM | 36.4KG | 620×45×16CM | 3.0MM | 150KG | Cover&Shrink |
| SSF864-20 | 86 mm | 20×2 | 35KV | 30CM | 1068CM | 39.2KG | 620×45×17.5CM | 3.0MM | 150KG | Cover&Shrink |
Model Selection
Model comparison
Read the dimensions
Compare the published Open Height, Weight and Packing Size for the same model and rail option. Request the closed ladder dimension if needed; packing length is not the closed ladder length.
Choose the configuration
Compare the two-section extension format and the 80 mm versus 86 mm side-rail profile option.
Compare packing
Use all three packing dimensions and the published packing method for each selected model. Ask for the carton quantity before estimating a shipment.
Product FAQ
Before choosing a model
Does the rail option establish load capacity?
The rail designation identifies a construction option. Use the selected model's published fields and request the relevant specification or test document for a load requirement; do not infer performance from width or surface finish alone.
How should an electrical-use requirement be checked?
Request the relevant specification or test document for the exact model and application. Confirm the models covered and test conditions; a fiberglass material name or a withstand-voltage entry alone is not an electrical-use approval.
