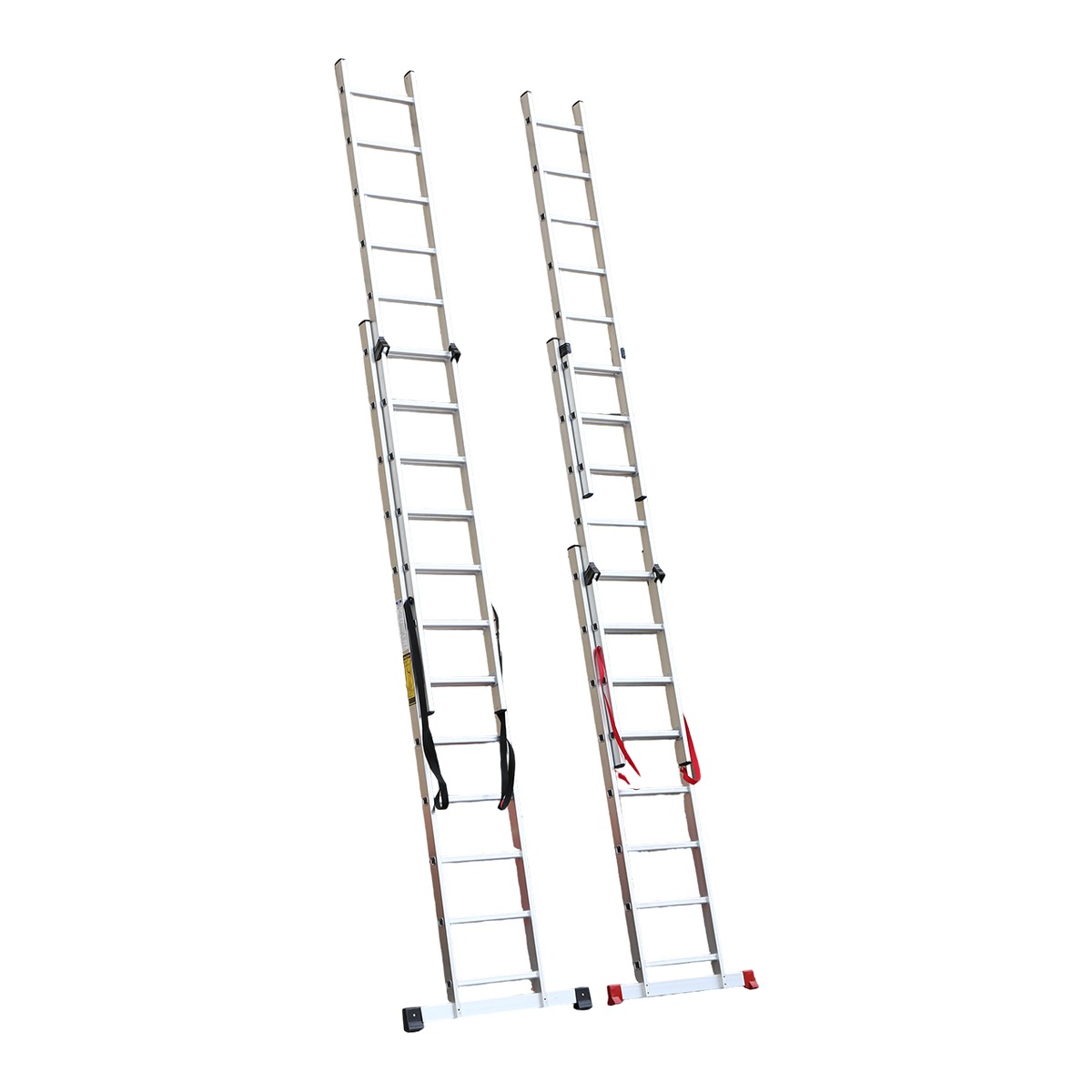

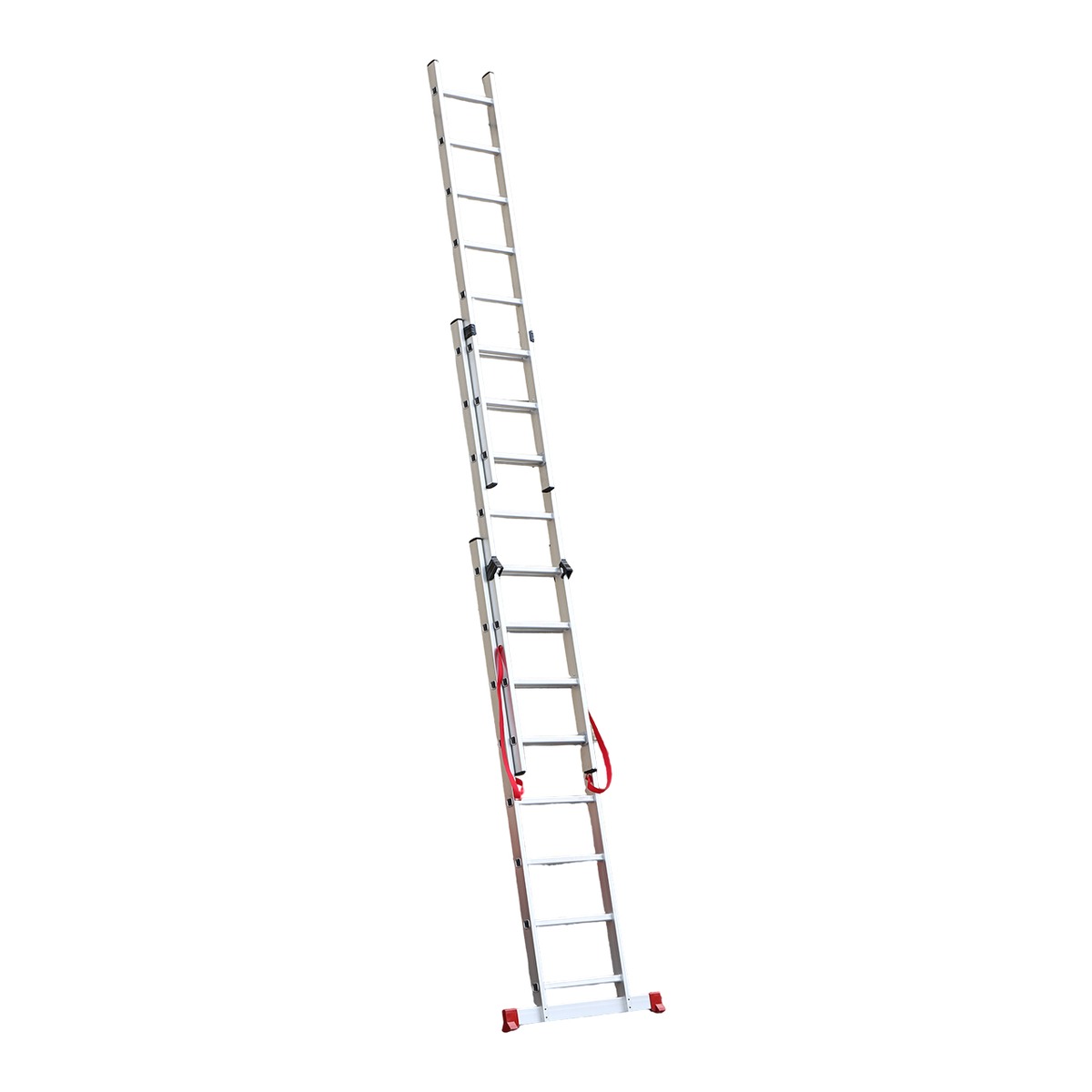

Three Section Aluminium Extension Ladder with Channeled or Smooth Side Rails

Compare three-section aluminium extension ladders with channeled or smooth rails, keeping the selected profile and model number with each dimension.

Request a Quote Back to Aluminium Ladders

Product Overview

Model Range SSC806-6 / SS806-6 to SSC806-15 / SS806-15

Step Range 6×3 to 15×3

Max Load 150KG

Thickness 1.2MM

Packing Shrink

Supply Position Wholesale Export / Customization Review

Aluminium rangeCustomization ReviewExport PackagingMOQ: confirm by model and orderLead Time: Confirm after order reviewLightweight access

Shortlist a model from the table below, then send its complete item number and quantity with your order requirements.

Send Inquiry

Side Rail Options

Choose the Side Rail Surface for Your Order

Both options share the same ladder structure, dimensions, and model specifications. The only difference is the side rail surface: the channeled profile is the more economical option, while the smooth profile is priced slightly higher.

More economical

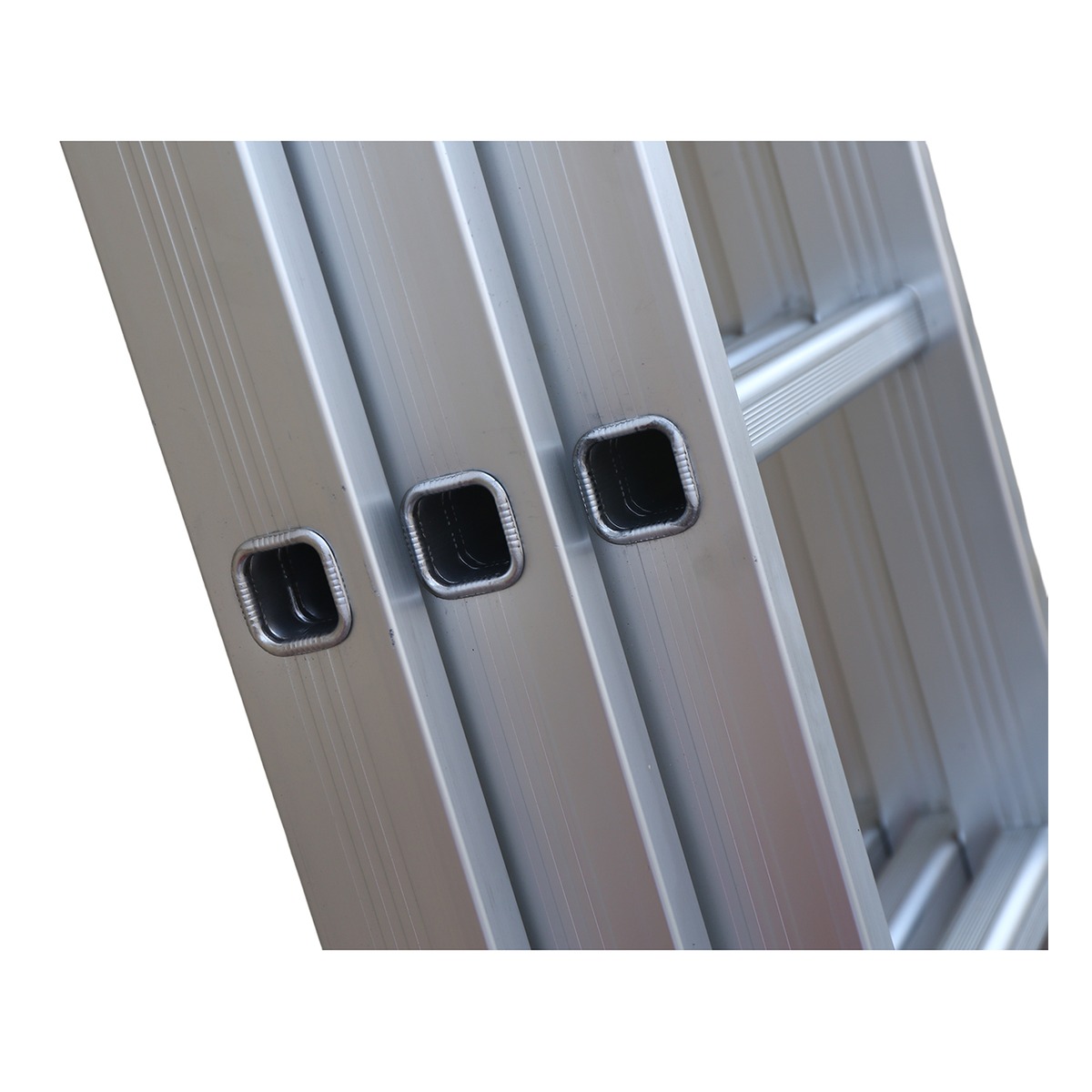

Channeled Side Rail

Visible longitudinal grooves on the widest side rail. Choose this option when purchase cost is the priority.

Slightly higher price

Smooth Side Rail

Flat side rail surface without longitudinal grooves. Choose this option when the smooth appearance is preferred.

Specifications

Product Parameters

Model-specific data below is maintained from the internal specification sheet. Final quotation can still be confirmed by selected model, order quantity, and buyer market requirements.

Item No.	Step	Pedal Spacing	Open Height	Weight	Packing Size	Thickness	Max Load	Packing
SSC806-6 / SS806-6	6×3	25CM	278CM	8.4KG	170×45×16.5CM	1.2MM	150KG	Shrink
SSC806-7 / SS806-7	7×3	25CM	353CM	9.2KG	198×45×16.5CM	1.2MM	150KG	Shrink
SSC806-8 / SS806-8	8×3	25CM	428CM	10KG	226×45×16.5CM	1.2MM	150KG	Shrink
SSC806-9 / SS806-9	9×3	25CM	503CM	10.8KG	254×45×16.5CM	1.2MM	150KG	Shrink
SSC806-10 / SS806-10	10×3	25CM	578CM	11.6KG	282×45×16.5CM	1.2MM	150KG	Shrink
SSC806-11 / SS806-11	11×3	25CM	655CM	12.2KG	310×45×16.5CM	1.2MM	150KG	Shrink
SSC806-12 / SS806-12	12×3	25CM	731CM	13.4KG	338×45×16.5CM	1.2MM	150KG	Shrink
SSC806-13 / SS806-13	13×3	25CM	756CM	14.4KG	366×45×16.5CM	1.2MM	150KG	Shrink
SSC806-14 / SS806-14	14×3	25CM	830CM	15.4KG	394×45×16.5CM	1.2MM	150KG	Shrink
SSC806-15 / SS806-15	15×3	25CM	905CM	16.2KG	422×45×16.5CM	1.2MM	150KG	Shrink

Model Selection

Model comparison

Selection

Read the dimensions

Compare the published Open Height, Weight and Packing Size for the same model and rail option. Request the closed ladder dimension if needed; packing length is not the closed ladder length.

Comparison

Choose the configuration

Compare the three-section extension family with channeled and smooth side-rail variants.

Published packing reference

Compare packing

Use all three packing dimensions and the published packing method for each selected model. Ask for the carton quantity before estimating a shipment.

Product FAQ

Before choosing a model

Does the rail option establish load capacity?

The rail designation identifies a construction option. Use the selected model's published fields and request the relevant specification or test document for a load requirement; do not infer performance from width or surface finish alone.

Which documents should accompany a model inquiry?

Name the destination market, application and required specification or test document. Availability and applicability must be checked for the exact model and order; documents for a material or another model do not automatically cover this ladder.
