Aluminium Platform Ladder B

The SS807B aluminium platform variant has a different support surface and an iron-chain guard. Compare its model dimensions with SS807.

Request a Quote Back to Aluminium Ladders

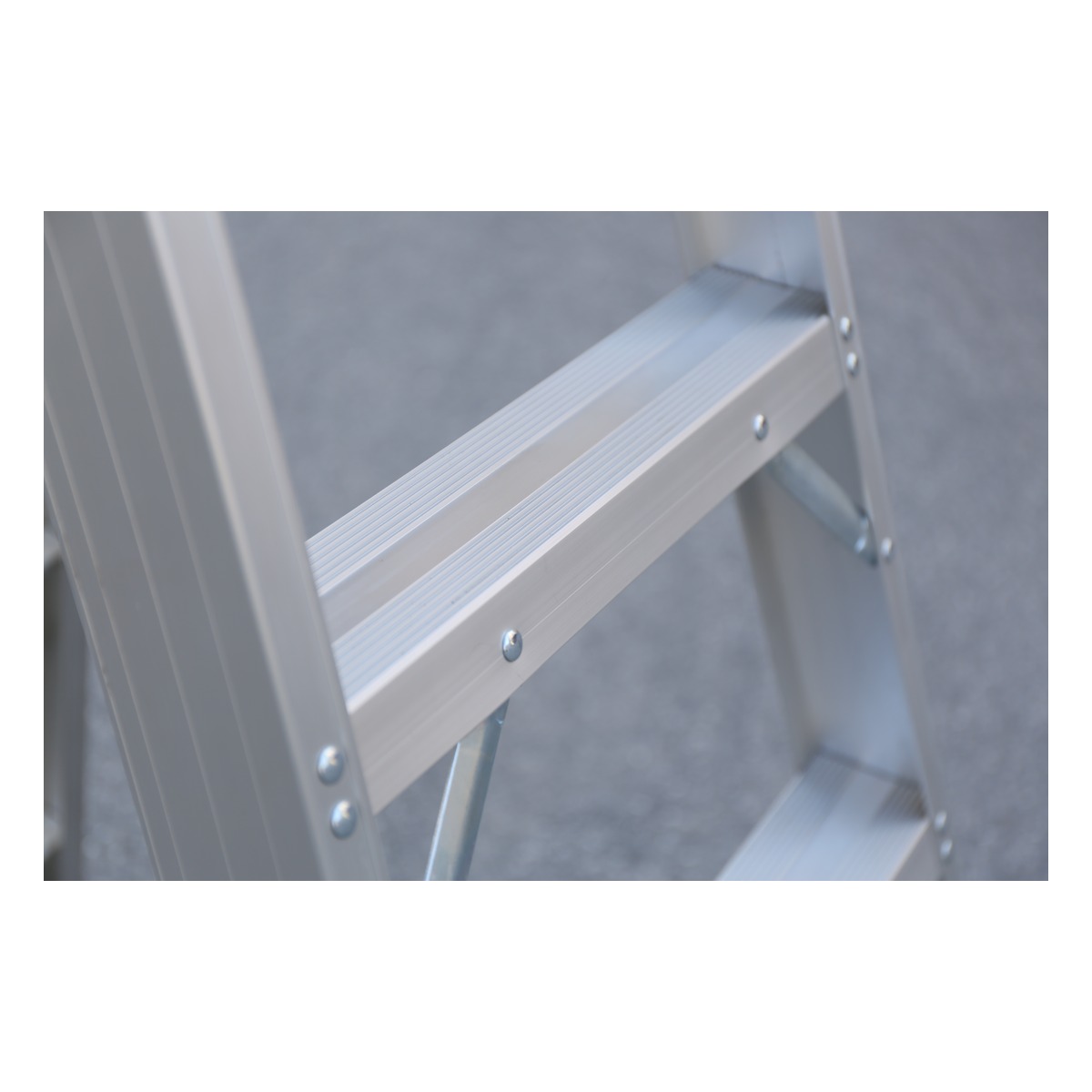

Aluminium Platform Ladder B detail image 1

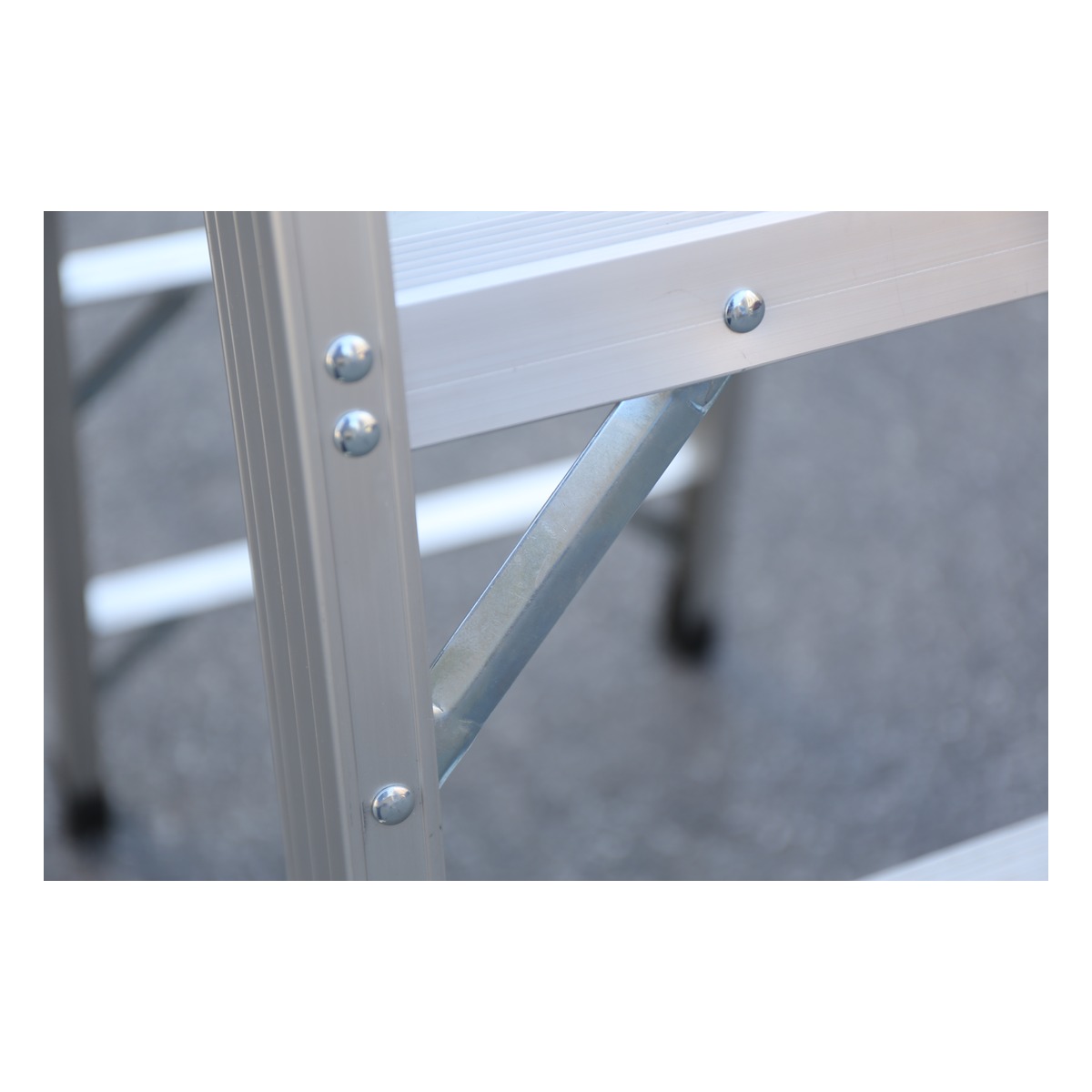

Aluminium Platform Ladder B detail image 2

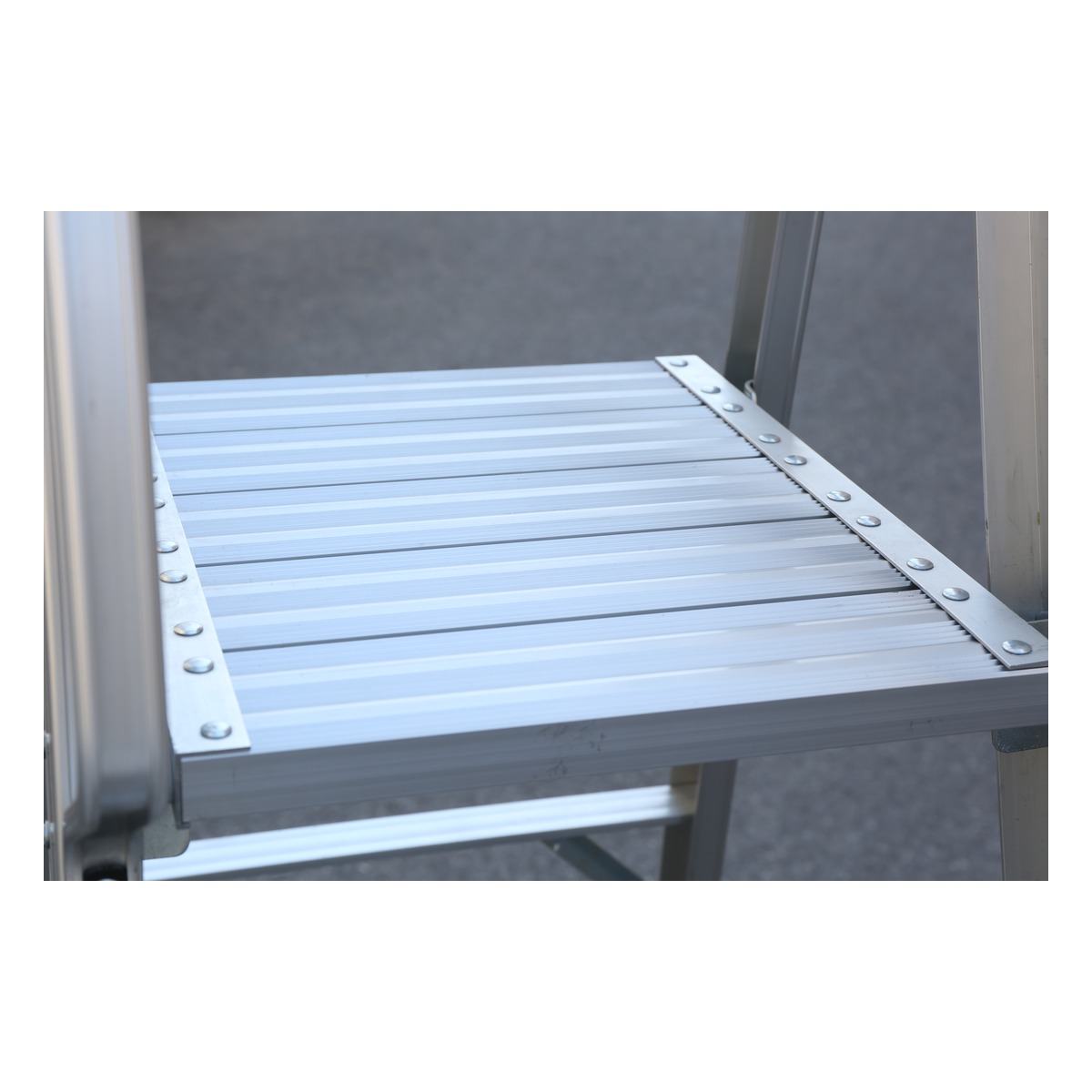

Aluminium Platform Ladder B detail image 3

Product Overview

Model Range SS807B-3 to SS807B-10

Step Range 3 to 10

Max Load 150KG

Thickness 1.2MM

Packing Cover&Shrink

Supply Position Wholesale Export / Customization Review

Aluminium rangeCustomization ReviewExport PackagingMOQ: confirm by model and orderLead Time: Confirm after order reviewLightweight access

Shortlist a model from the table below, then send its complete item number and quantity with your order requirements.

This B version uses a different support-surface structure and includes the iron-chain guard shown in the product photos.

Send Inquiry

Specifications

Product Parameters

Model-specific data below is maintained from the internal specification sheet. Final quotation can still be confirmed by selected model, order quantity, and buyer market requirements.

Item No.	Step	Pedal Spacing	Open Height	Weight	Packing Size	Thickness	Max Load	Packing
SS807B-3	3	30CM	144CM	7.6KG	158×50×13CM	1.2MM	150KG	Cover&Shrink
SS807B-4	4	30CM	174CM	9.2KG	188×52×13CM	1.2MM	150KG	Cover&Shrink
SS807B-5	5	30CM	204CM	10.8KG	218×54×13CM	1.2MM	150KG	Cover&Shrink
SS807B-6	6	30CM	232CM	12.4KG	248×56×13CM	1.2MM	150KG	Cover&Shrink
SS807B-7	7	30CM	262CM	14KG	278×58×13CM	1.2MM	150KG	Cover&Shrink
SS807B-8	8	30CM	292CM	15.6KG	308×60×13CM	1.2MM	150KG	Cover&Shrink
SS807B-9	9	30CM	322CM	17.2KG	338×62×13CM	1.2MM	150KG	Cover&Shrink
SS807B-10	10	30CM	352CM	18.8KG	368×64×13CM	1.2MM	150KG	Cover&Shrink

Model Selection

Model comparison

Selection

Read the dimensions

Read Step, Open Height, Weight and Packing Size from the same model row. Open Height describes the ladder dimension, not the user's working height.

Comparison

Choose the configuration

Compare the SS807B platform variant and its model-specific packing dimensions.

Published packing reference

Compare packing

Use all three packing dimensions and the published packing method for each selected model. Ask for the carton quantity before estimating a shipment.

Product FAQ

Before choosing a model

How should SS807 and SS807B be compared?

Compare the support surface and the B variant's iron-chain guard, then match the step count and dimensions. Keep the full SS807 or SS807B reference; these construction differences do not by themselves establish a higher load rating.

Which documents should accompany a model inquiry?

Name the destination market, application and required specification or test document. Availability and applicability must be checked for the exact model and order; documents for a material or another model do not automatically cover this ladder.
