A Type Aluminium Step Ladder

Compare A-type aluminium step ladders by model and step count, then check the dimensions against household and platform alternatives.

Request a Quote Back to Aluminium Ladders

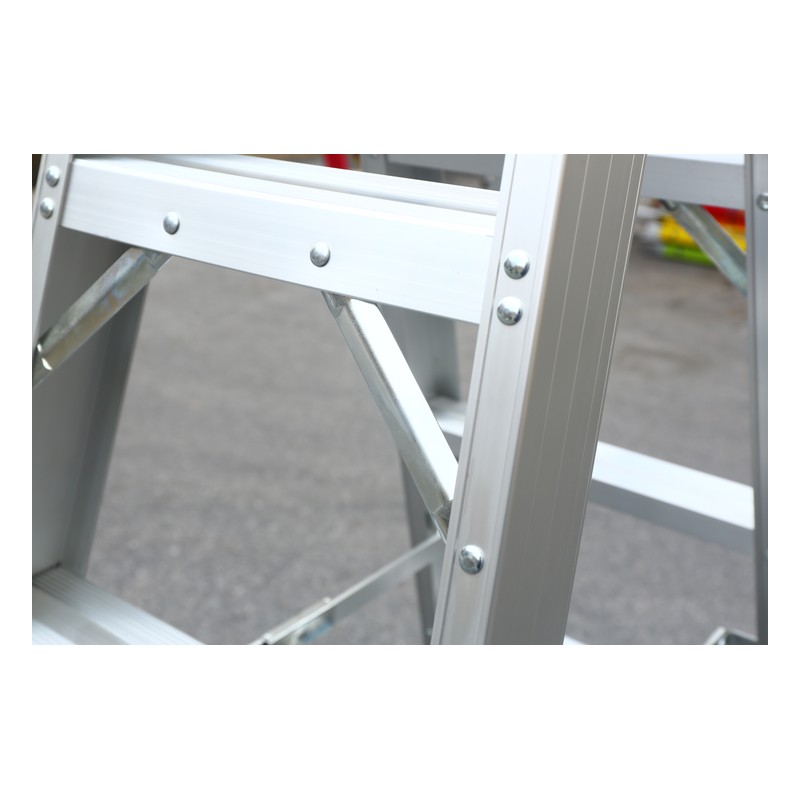

A Type Aluminium Step Ladder detail image 1

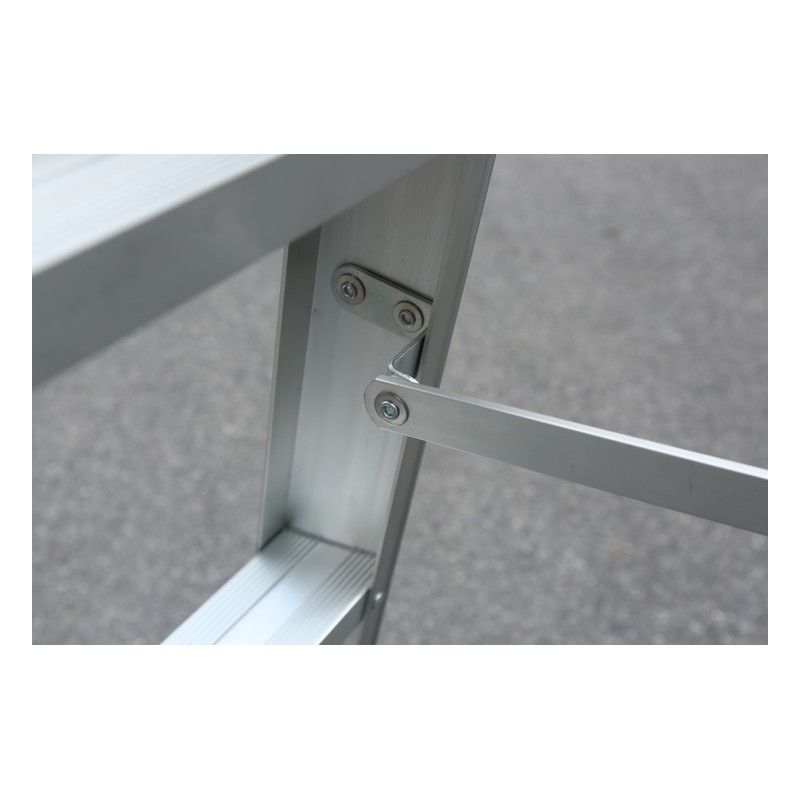

A Type Aluminium Step Ladder detail image 2

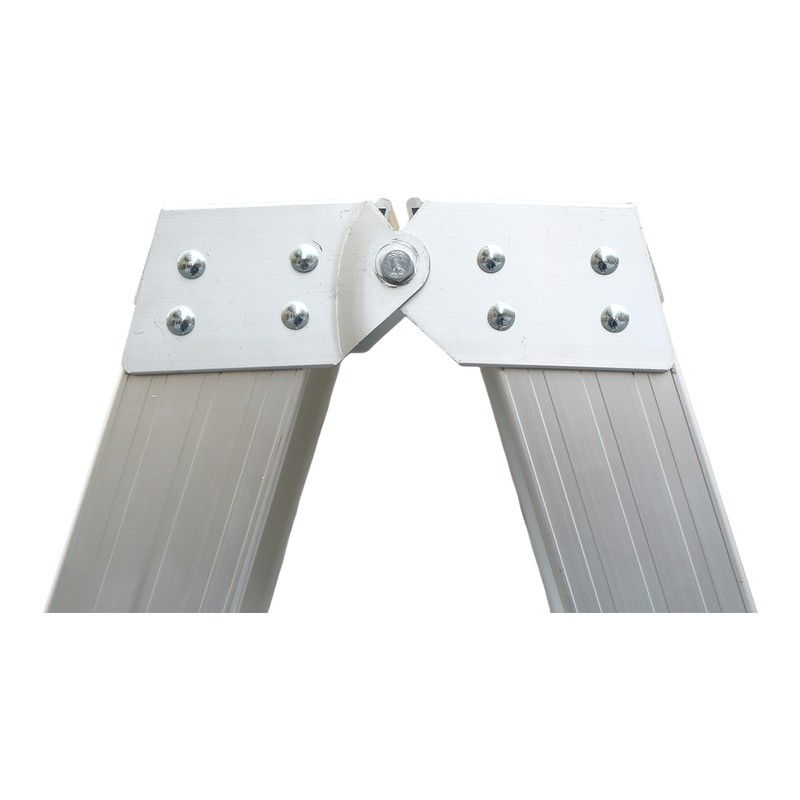

A Type Aluminium Step Ladder detail image 3

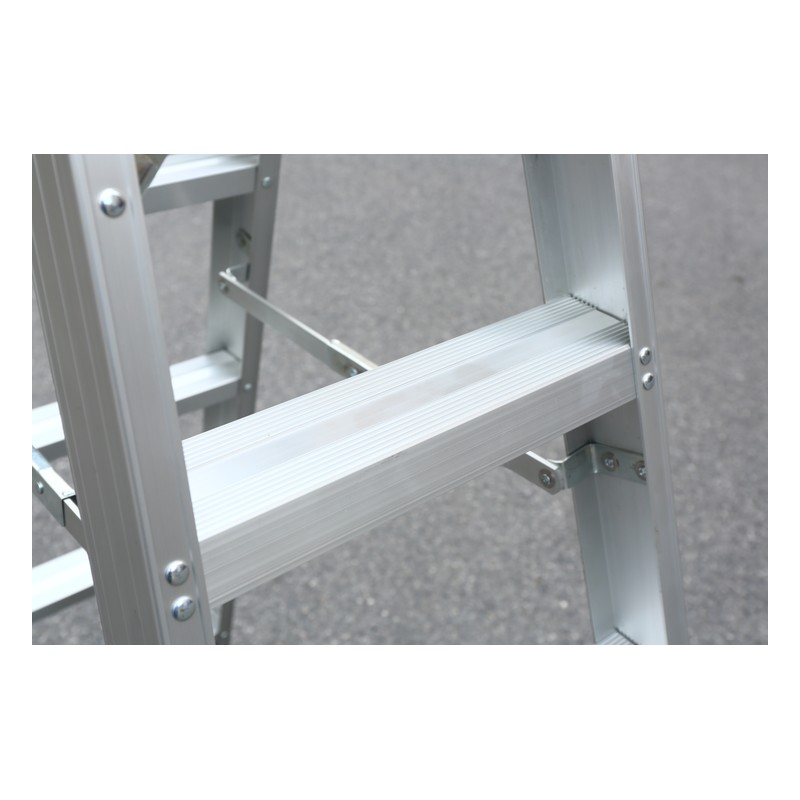

A Type Aluminium Step Ladder detail image 4

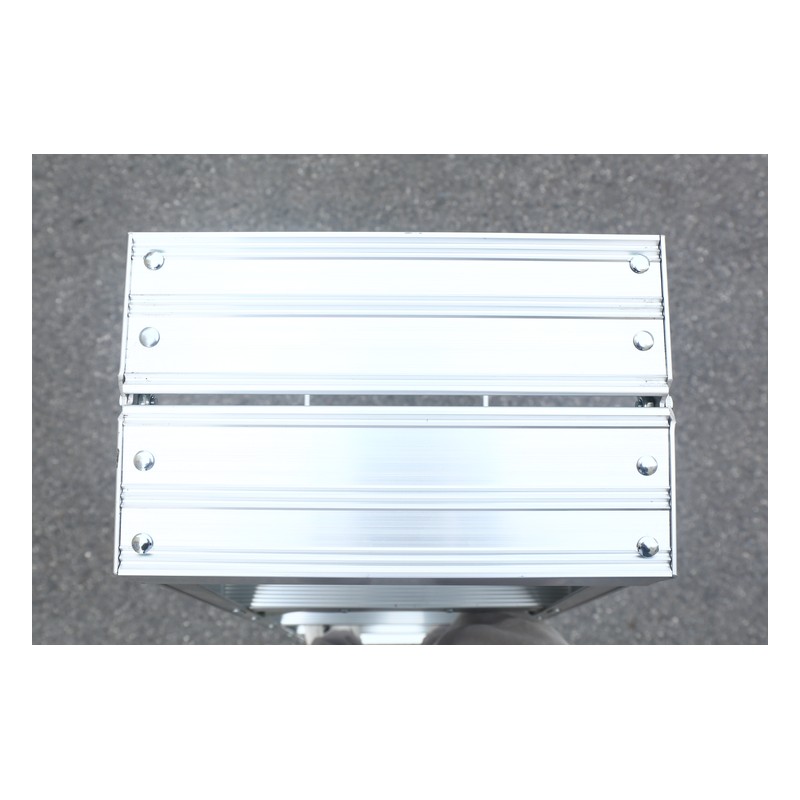

A Type Aluminium Step Ladder detail image 5

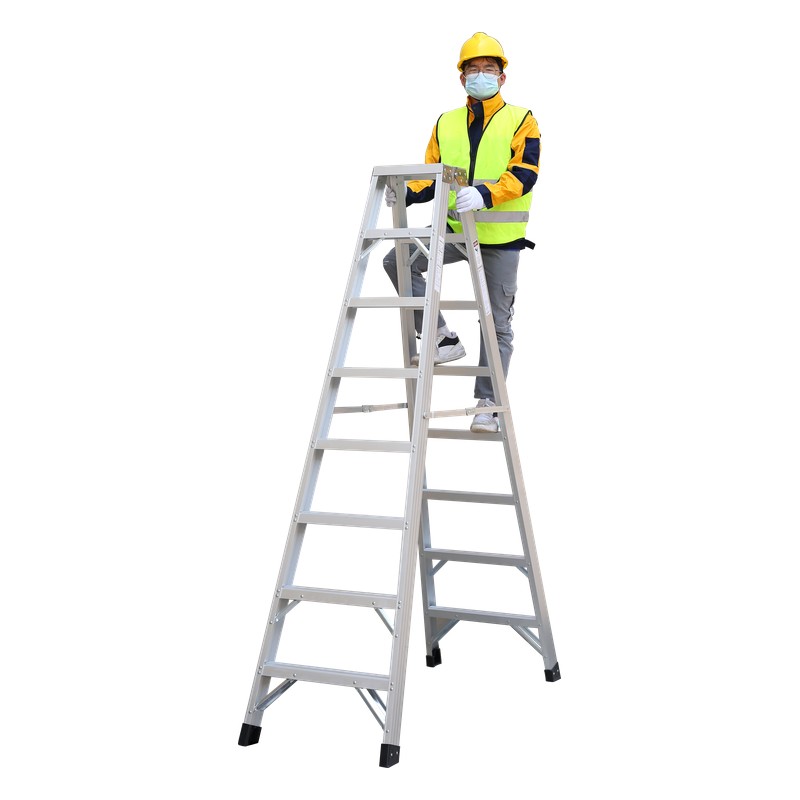

A Type Aluminium Step Ladder detail image 6

Product Overview

Model Range SS803-5 to SS803-14

Step Range 5 to 14

Max Load 150KG

Thickness 1.2MM

Packing Shrink

Supply Position Wholesale Export / Customization Review

Aluminium rangeCustomization ReviewExport PackagingMOQ: confirm by model and orderLead Time: Confirm after order reviewLightweight access

Shortlist a model from the table below, then send its complete item number and quantity with your order requirements.

Send Inquiry

Specifications

Product Parameters

Model-specific data below is maintained from the internal specification sheet. Final quotation can still be confirmed by selected model, order quantity, and buyer market requirements.

Item No.	Step	Pedal Spacing	Open Height	Weight	Packing Size	Thickness	Max Load	Packing
SS803-5	5	30CM	143CM	7KG	153×42×20CM	1.2MM	150KG	Shrink
SS803-6	6	30CM	170CM	8.4KG	183×44×20CM	1.2MM	150KG	Shrink
SS803-7	7	30CM	200CM	10KG	213×46×20CM	1.2MM	150KG	Shrink
SS803-8	8	30CM	227CM	11.6KG	243×48×20CM	1.2MM	150KG	Shrink
SS803-9	9	30CM	255CM	13.2KG	273×50×20CM	1.2MM	150KG	Shrink
SS803-10	10	30CM	285CM	14.8KG	303×52×20CM	1.2MM	150KG	Shrink
SS803-12	12	30CM	340CM	18.4KG	363×54×20CM	1.2MM	150KG	Shrink
SS803-14	14	30CM	400CM	21.2KG	423×56×20CM	1.2MM	150KG	Shrink

Model Selection

Model comparison

Selection

Read the dimensions

Read Step, Open Height, Weight and Packing Size from the same model row. Open Height describes the ladder dimension, not the user's working height.

Comparison

Choose the configuration

Compare the A-type aluminium step layout rather than a household or platform configuration.

Published packing reference

Compare packing

Use all three packing dimensions and the published packing method for each selected model. Ask for the carton quantity before estimating a shipment.

Product FAQ

Before choosing a model

What should be checked for the intended application?

Send the selected model and application with any load, access or document requirements. Ask for the relevant instructions and specifications; the product name and photographs alone do not establish suitability for a task.

Which documents should accompany a model inquiry?

Name the destination market, application and required specification or test document. Availability and applicability must be checked for the exact model and order; documents for a material or another model do not automatically cover this ladder.
